Non-volatile memory operations that change a mapping between physical and logical addresses when restoring data

Abstract

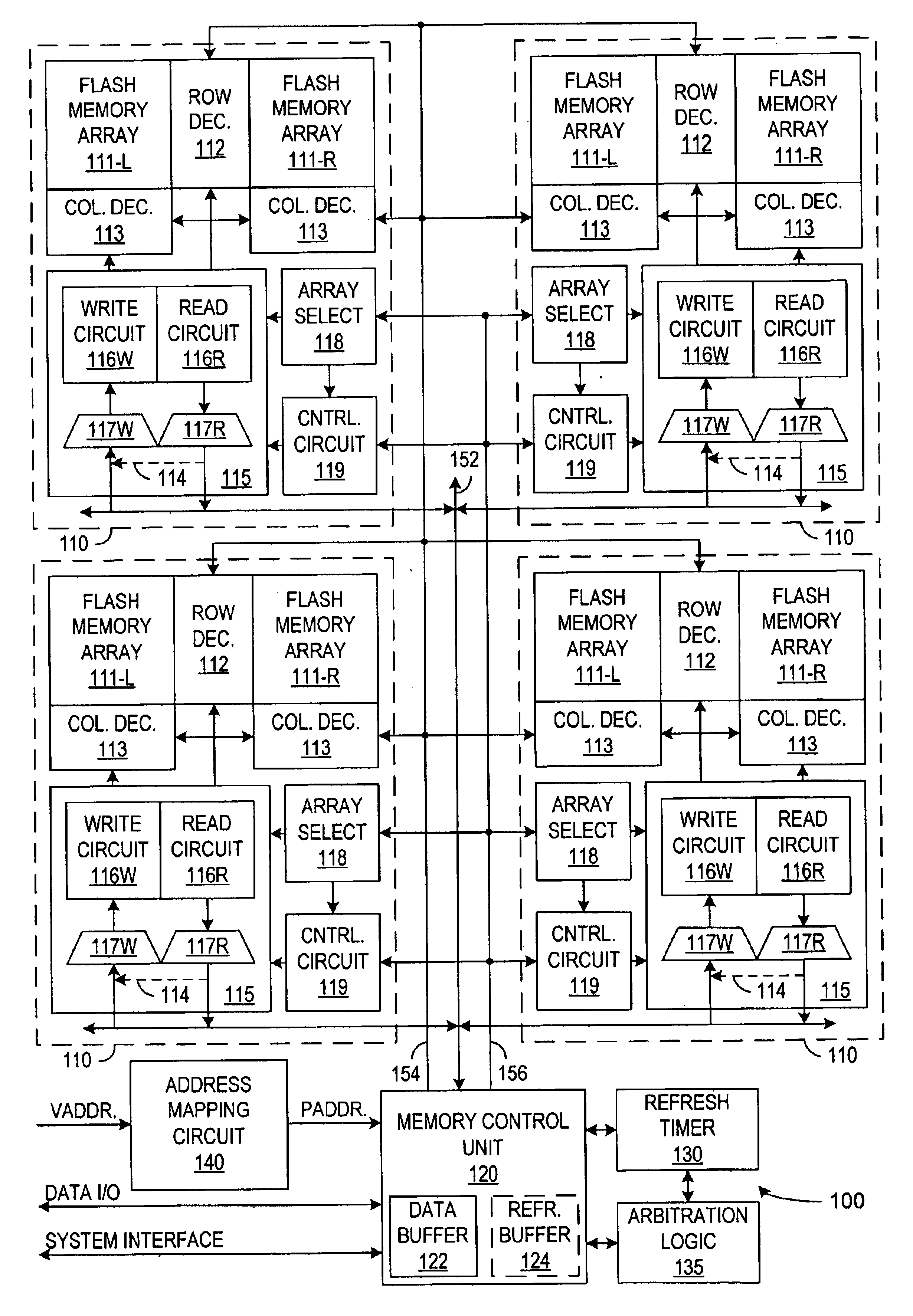

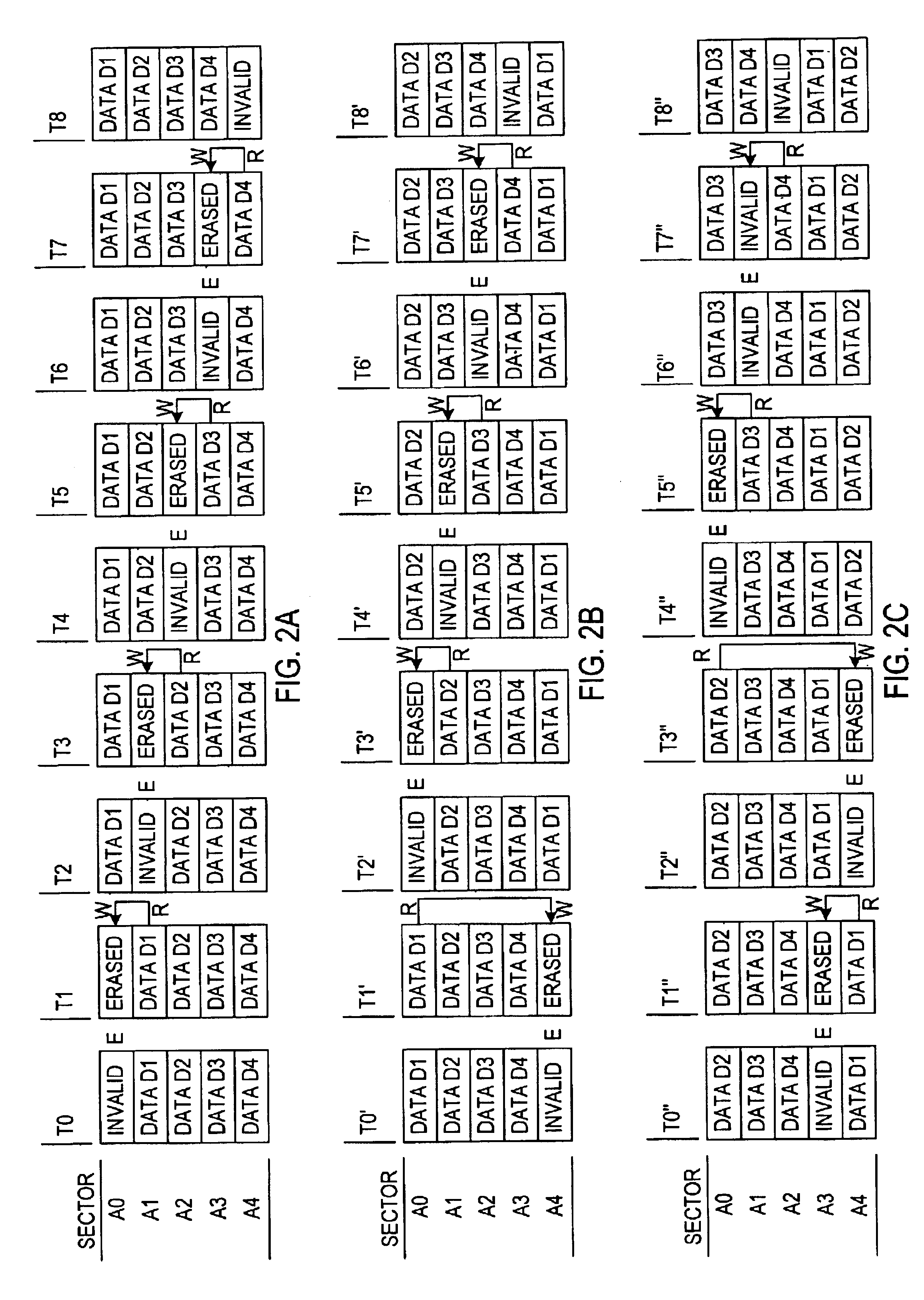

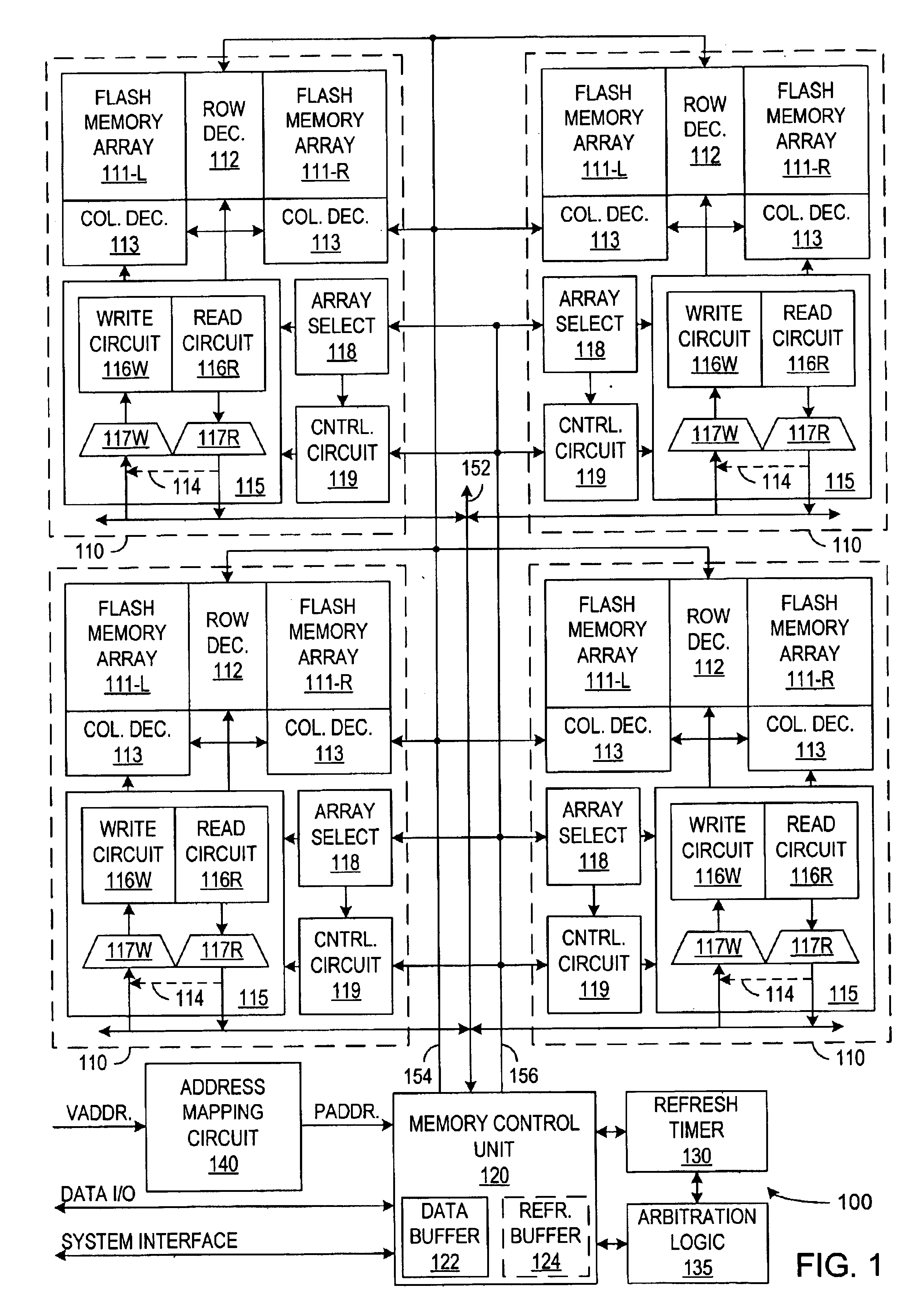

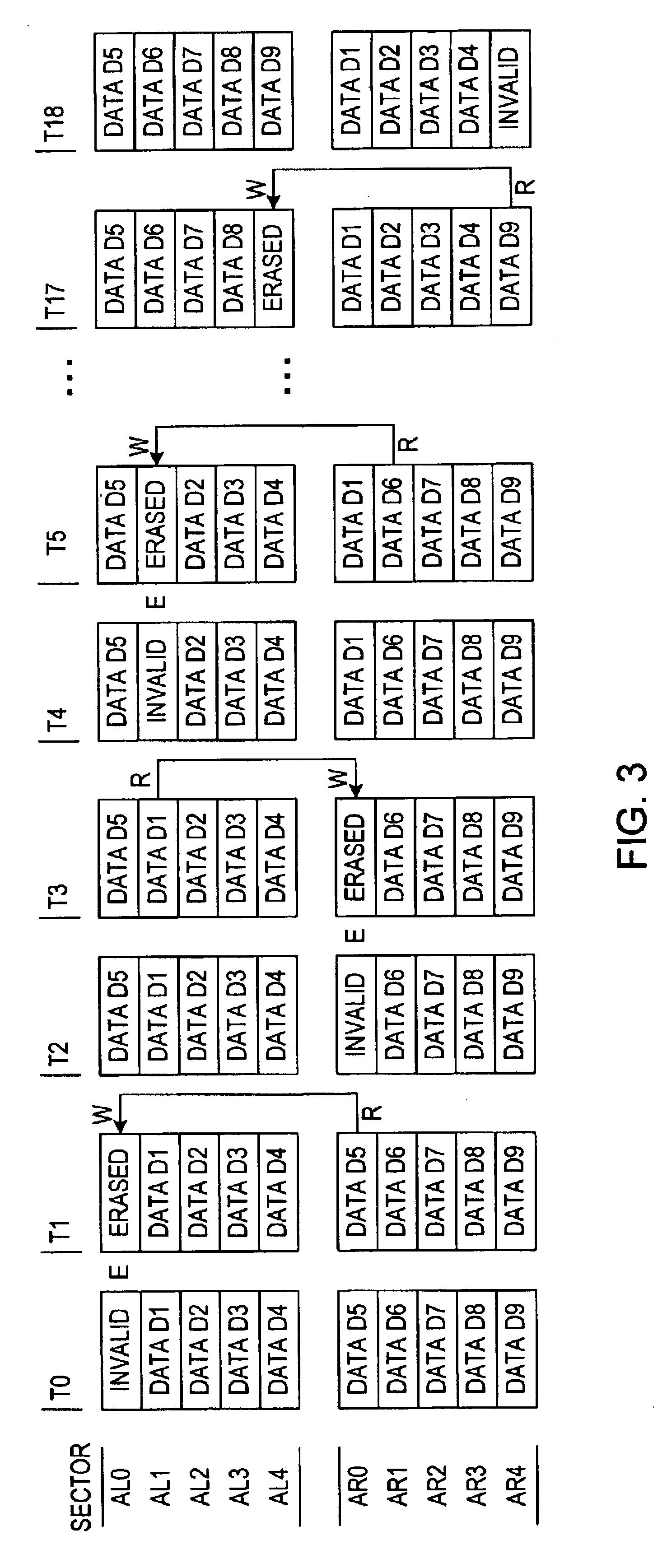

A multi-bit-per-cell non-volatile memory performs refresh operations that move data to different physical storage locations. The movement of data may extend the life of a non-volatile memory by avoiding repetitive erasing and writing of the same data value in the same memory cell. A memory mapping circuit in the memory adjusts for different storage configuration that the refresh operations create. In a particular embodiment, a refresh operation swaps the physical locations of two data blocks, and alternates between two mappings of physical addresses to logical addresses.
